Description
TF6 is a flexible silicone LED warning light designed for installation on curved and irregular vehicle surfaces. Unlike conventional rigid lightheads, TF6 can bend backward up to 30°, making it easier to install on curved body panels, bumpers and other surfaces where a flat warning light cannot fit properly.
Its silicone construction also provides improved resistance to impact, scratching and cracking. TF6 is ECE R65 Class 2 and ECE R10 approved, with IP67 and IP69K protection.
Key Features
- Flexible silicone LED warning light
- Bends backward up to 30°
- Suitable for curved and irregular vehicle surfaces
- Silicone construction for improved impact resistance
- ECE R65 Class 2 approved
- ECE R10 approved
- IP67 / IP69K
- 10–33V
- Warning and working light functions
- 3M adhesive or M3 screw mounting
- Available from EU stock
Designed for Curved Vehicle Surfaces
Conventional LED warning lights normally use a rigid housing and require a relatively flat mounting surface.

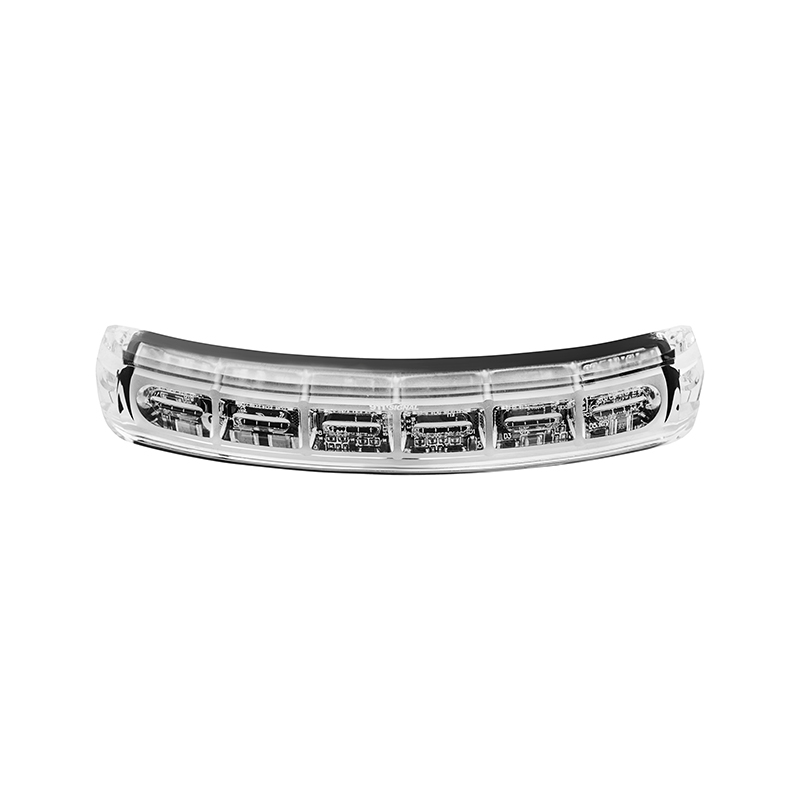

The flexible silicone construction of TF6 allows the lighthead to follow the shape of curved vehicle panels. It can bend backward up to 30°, giving vehicle upfitters and installers more flexibility when choosing the mounting position.
TF6 is suitable for curved body panels, bumpers, grilles, motorcycle fairings, utility vehicles and emergency vehicle conversions.
Flexible and Impact-Resistant Silicone Construction
The silicone construction of TF6 provides two key advantages: flexibility and improved resistance to impact.
The flexible housing allows the warning light to adapt to curved or irregular surfaces, while the silicone material provides improved resistance to impact, scratching and cracking compared with conventional rigid constructions.
This makes TF6 suitable for professional vehicles exposed to vibration, road debris and demanding operating conditions.

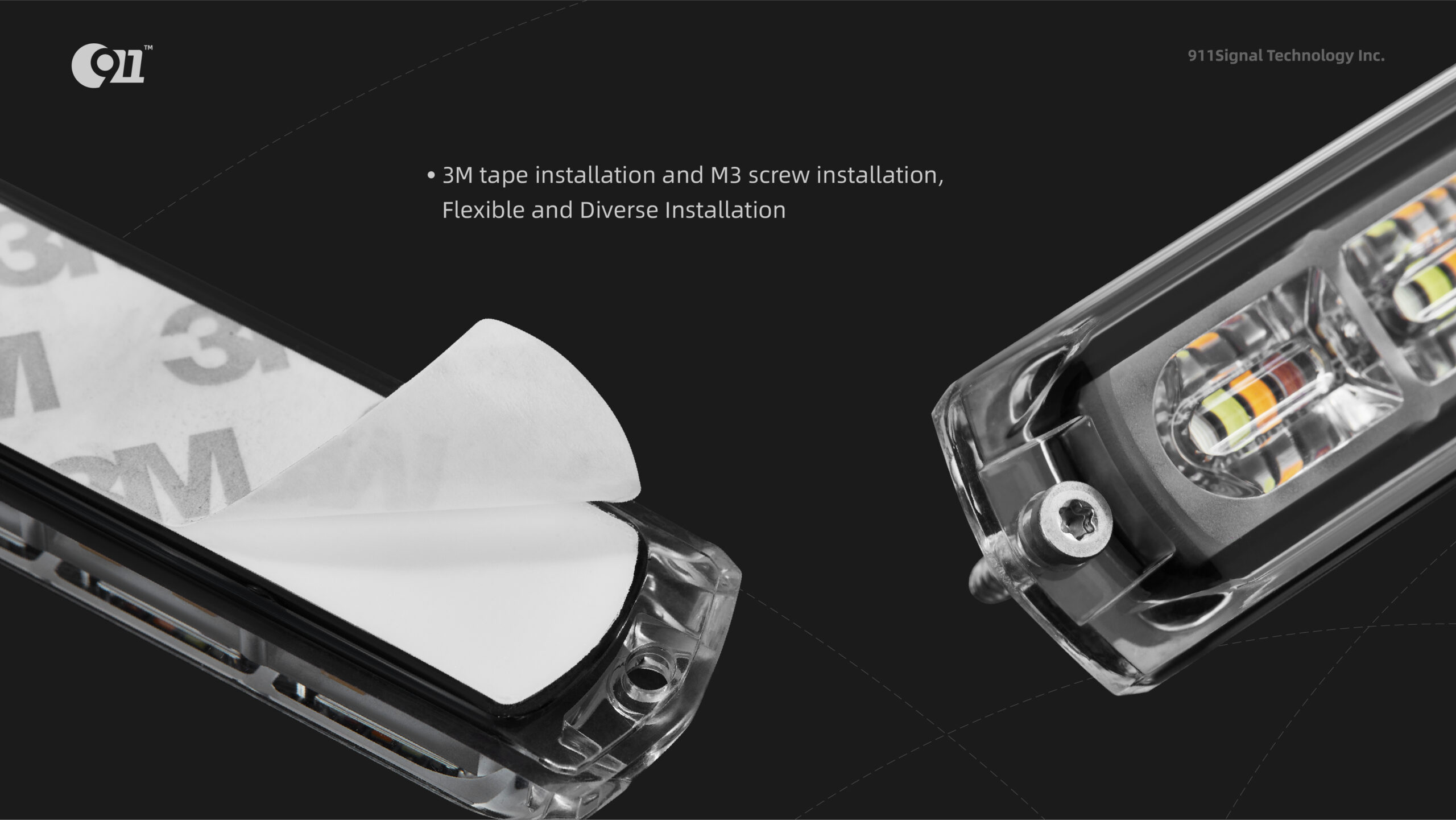

Installation

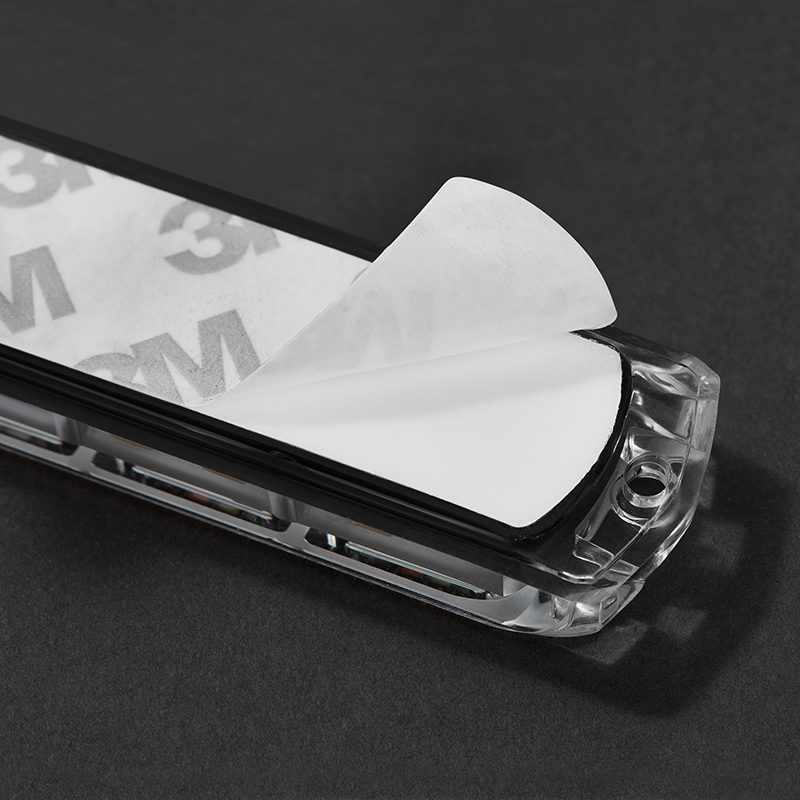

TF6 can bend backward up to 30° and supports both 3M adhesive mounting and M3 screw mounting.

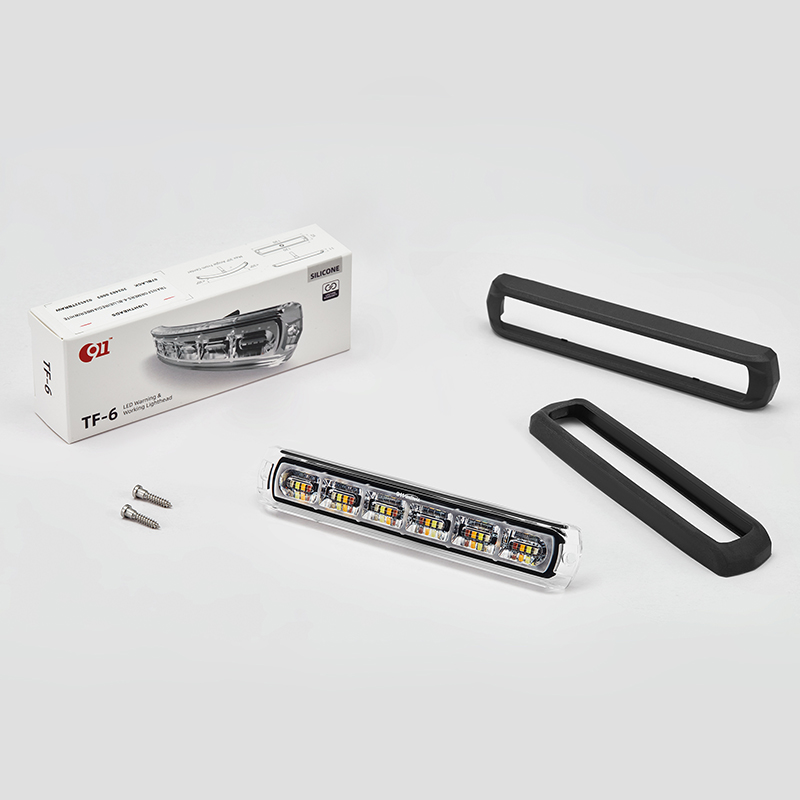

Two cover options are available: ABS hard cover and silicone soft cover.
Certifications and Protection
- ECE R65 Class 2
- ECE R10
- SAE J595 Class 1
- CA T13
- IP67
- IP69K
Technical Specifications
- Voltage: DC 10–33V
- Color: Single / Dual
- Flash patterns: 14
- Lens: TIR
- Function: Warning Light / Working Light
- Operating temperature: -30°C to +70°C
- Mounting: M3 screw / 3M adhesive
- Warranty: Lifetime Warranty
Frequently Asked Questions
Can TF6 be installed on curved vehicle surfaces?
Yes. TF6 is designed for curved and irregular vehicle surfaces. Its flexible silicone construction allows the lighthead to bend backward up to 30°.
Why use a silicone LED warning light?
Silicone gives TF6 its flexibility and also provides improved resistance to impact, scratching and cracking compared with conventional rigid constructions.
Is TF6 ECE R65 approved?
Yes. TF6 is ECE R65 Class 2 approved and also complies with ECE R10 requirements.
How is TF6 installed?
TF6 can be installed using 3M adhesive mounting or M3 screws, depending on the vehicle surface and installation requirements.
Can TF6 be used on motorcycles?
Yes. Its flexible construction makes TF6 suitable for motorcycle fairings and other curved surfaces, provided that the installation complies with the applicable vehicle and lighting regulations.
